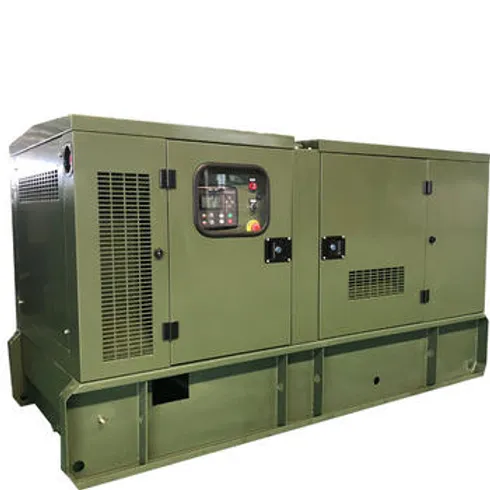

80kVA Perkins diesel generator

MAIN FEATURES:

• Frequency Hz 50
• Voltage V 400 / 230
• Power factor cos ϕ 0.8
• Phase 3

POWER RATING:

• Prime power PRP kVA 80
• Maximum Power ESP kVA 89

ENGINE SPECIFICATIONS:

• Engine manufacturer Perkins
• Model 1104A-44TG2
• Number of cylinders 4 vertical in-line
• Bore and stroke 105 x 127 mm
• Displacement 4.4 litres
• Aspiration Turbocharged
• Cycle 4 stroke
• Combustion system Indirect injection
• Compression ratio 17.25:1
• Rotation Anti-clockwise, viewed on flywheel
• Total lubricating capacity 8.0 litres
• Cooling system Water cooled
• Total coolant capacity 13.0 litres

ALTERNATOR SPECIFICATIONS:

• Alternator Stamford
• Model UCI 224G
• AVR Type AVR Power
• Voltage Regulation ± 1%
• Insulation System CLASS H
• Protection IP23
• Stator Winding Double Layer Concentric
• Winding Pitch Two Thirds
• Winding Leads 12

DIMENSIONAL DATA:

• Length (L) mm 2298
• Width (W) mm 1104
• Height (H) mm 1600
• Weight Kg 1252
• Fuel tank capacity L 260

FUEL CONSUMPTION:

• Fuel consumption @ 75% l/h 14.0
• Fuel consumption @ 100% l/h 18.7
• Fuel consumption @ 110% l/h 20.5

NOISE LEVEL:

• Noise pressure level @ 7 m dB(A) 69.2 – 70.9
